• Space APIs, JSON and REST (SOCIS 2017)

    By Antonio Hidalgo Galindo

    After setting up the blog, it was time to start with the first week of my timeline. The task for this week was to research the available NASA Open APIs and other NEOs databases that could better fit for this project.

    I had already studied some APIs, and taked a look at their capabilities, but further research was needed. As my proposal was made of 3 different pages, I analyzed each one separately.

    CNEOS page

    In the CNEOS page there is a list of tools, but it can be shorten to four different APIs/Databases:

    • JPL Small-Body Database Browser: allows to search any small-body (like NEOs) by entering the IAU number, name, or designation, and also supports wild-cards * and/or ?. Available data include, quoting the page itself:

      • orbital elements
      • orbit diagrams
      • physical parameters
      • discovery circumstances

      Newly discovered objects and their orbits are added on a daily basis.

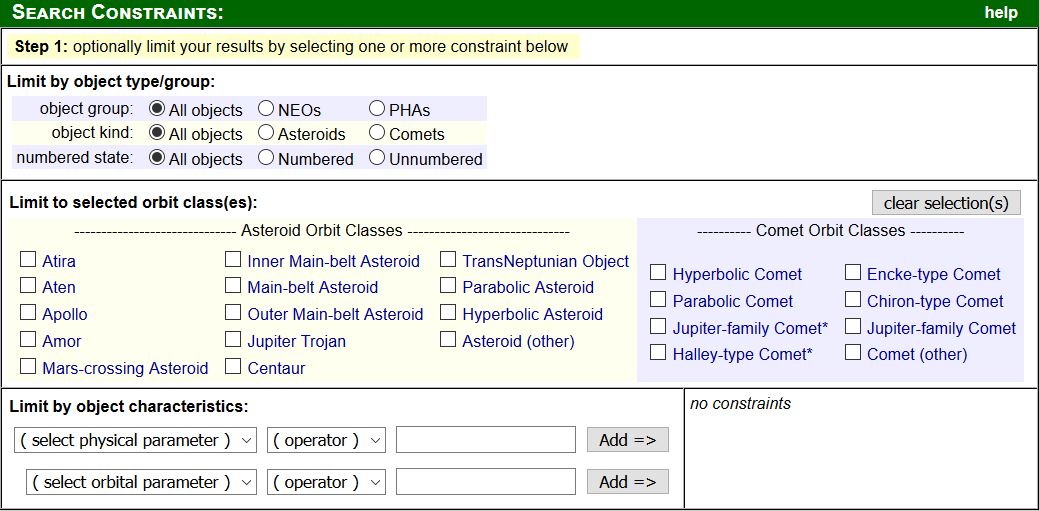

    • JPL Small-Body Database Search Engine: can be used to generate custom tables of orbital and/or physical parameters for all asteroids and comets or a specified sub-set. There is a huge amount of search contraints, for example: Figure 1 And you can also select output fields, and choose between HTML and CSV output format.

    • Horizons: provides access to highly accurate ephemerides for solar system objects, not only small-body. Can be accessed using telnet, email and web-interface.


    Among NASA OPEN APIs, it is NeoWs. It can be used to get lists of Near Earth Objects (within a date range, for today...), and to retrieve orbital elements and close aproaches data given a SPK-ID (integer code that JPL uses to identify objects). Despite his name, only works with NEAs (Near Earth Asteroids), and therefore there is no information about comets.


    As stated on his web, JPL SSD/CNEOS API SERVICE

    provides an interface to machine-readable data (JSON-format) related to SSD and CNEOS.

    The more relevant tools are:

    • Close-Approach Data (CAD): provides access to current close-approach data for all asteroids and comets in JPL Small-Body DataBase.

    • Accessible NEAs (NHATS): is provided by Near-Earth Object Human Space Flight Accessible Targets Study (NHATS), and can be used to identify those NEAs that may be well-suited to future human space flight round trip rendezvous missions.

    • Scout: Scout system provides trajectory analysis and hazard assessment for recently detected objects.

    • Sentry: Sentry is a highly automated collision monitoring system that continually scans the most current asteroid catalog for possibilities of future impact.

    Choosing the APIs

    Once all the possibilities were studied, it was time to choose the APIs that seem more suitable for our purpose.

    Given that poliastro core are Orbit objects, our main goal is to automatically create a NEO orbit, based on data from internet APIs. In order to achieve this, orbital elements or position and velocity vectors are needed, so this was the first requeriment that APIs had to comply with.

    Therefore several APIs could be discarded because they do not provide needed data: Accesible NEAs, Scout, Sentry and Close-Approach Data.

    Since we would rather not have to deal with intricate POST requests, another important requeriment for APIs was to provide a good interface (the "I" in API stands for interface, so...), and with luck something close to RESTFul webservices.

    JPL Small-Body Database Search Engine requires POST requests that are more than 150 lines long, so we automatically discarded it.

    Finally, the third requeriment, considering that we are writing code in Python, was machine-readable data output, with JSON being the best format and awfully written HTML being the worst.

    Both JPL Small-Body Database Browser and Horizons provide HTML output, which have to be parsed, with all the risks that imply, so they were discarded.

    In order to clarify all of this data sequence, I made a table:

    API Orbital elements? REST-style? Machine-readable? Other
    JPL Small-Body Database Browser Yes Yes No Not limited to NEOs
    JPL Small-Body Database Search Engine Yes No Yes (CSV) Not limited to NEOs
    Horizons Yes No No [existent Python interface]
    NeoWs Yes Yes Yes (JSON) Only for NEAs (asteroids)
    Close-Approach Data (CAD) No Yes Yes (JSON)
    Accessible NEAs (NHATS) No Yes Yes (JSON)
    Scout No Yes Yes (JSON)
    Sentry No Yes Yes (JSON)
    [existent Python interface]: https://github.com/mommermi/callhorizons

    With all this requeriments in mind, the best option seemed to be NeoWs. Although it doesn't provides information about NECs (comets), they are only 0.7% of NEOs total, so they could be discarded (only for the moment :P). Another issue related to NeoWs is the fact that it only allows to browse by SPK-ID number (do not confuse with IAU number), which is unknown for most people, so before doing any query, SPK-ID number has to be found.

    And that was all for this week. Next week, we will start with coding itself, adding an orbit_from_spk_id function to poliastro, that queries NeoWs API. See you!
